Product Details
TECHNICAL DATA

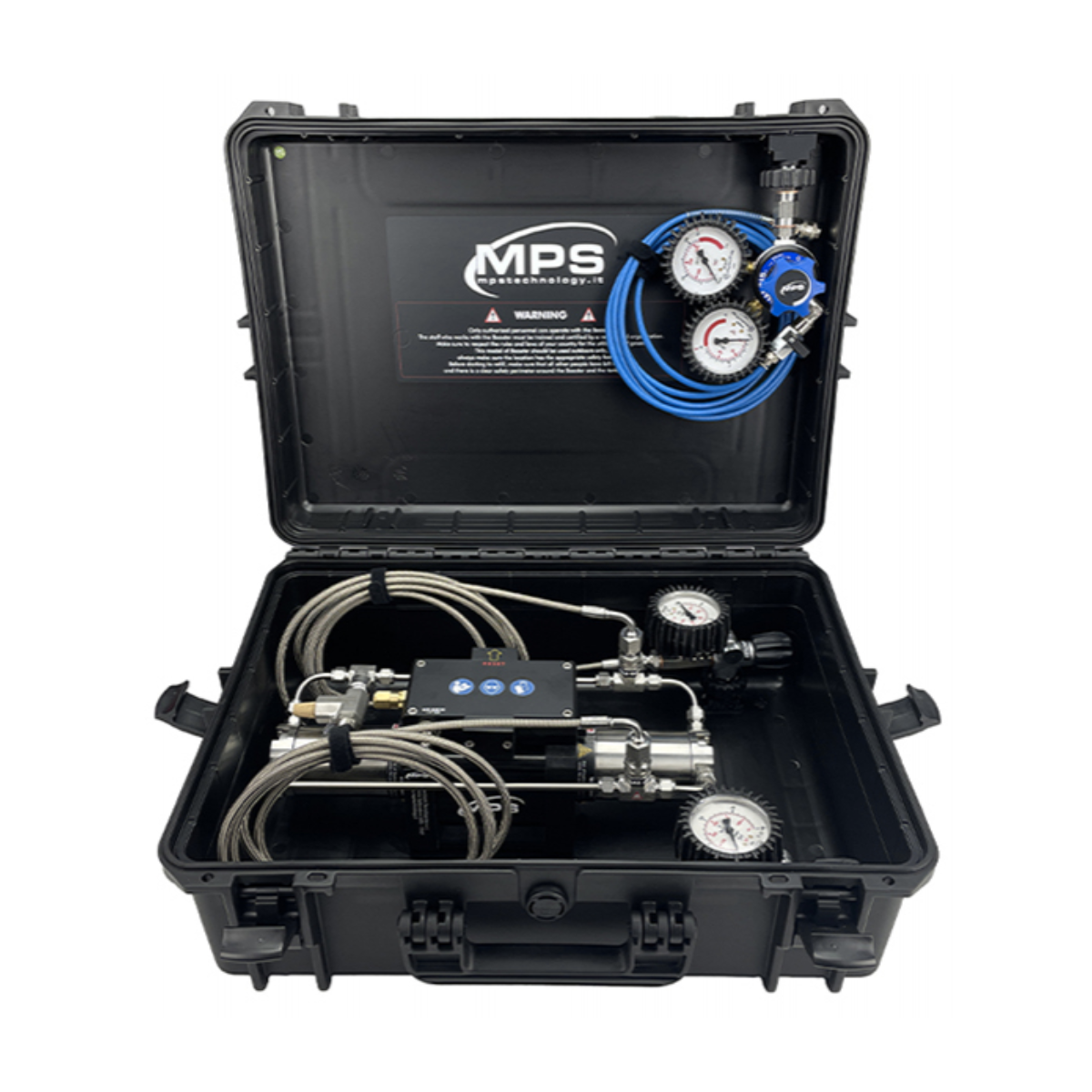

AIR DRIVEN GAS BOOSTER DOUBLE ACTING – SINGLE STAGE
TRANSMISSION RATIO: 1:25
MAX DRIVE AIR PRESSURE: 8/10 Bar – 116/145 psig
DISPLACEMENT: 2 x 19 cc
MAX OUT PRESSURE: 230 Bar – 3335 psig / 310 Bar – 4500 psig
MIN SUCTION PRESSURE: 5 Bar
AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4″
AIR DRIVE REGULATOR: HP and LP gauges, Speed Adjust Valve, 3 m Tube with Micro Quick Connection 1/4″, DIN 300
AIR DRIVE HOSE LENGHT: 3 m
GAS INLET CONNECTION : 3 m Stainless Steel Braid Hose, Filter, Valve with Slow Purge, 63 mm 0-400 Bar Gauge, DIN 300 connection
GAS OUTLET CONNECTION: 3 m Stainless Steel Braid Hose, Valve with Slow Purge, 63 mm 0-400 Bar Gauge, DIN 300 connection
WEIGHT: 14.2 Kg
DIMENSIONS: 55.5 x 42.8 x 21.1 cm
MAIN FEATURES:
- OXYGEN SERVICE
- Technopolimer water/dust resistant transport case
- All-in-one filling system
- Proportional Relief Valve
