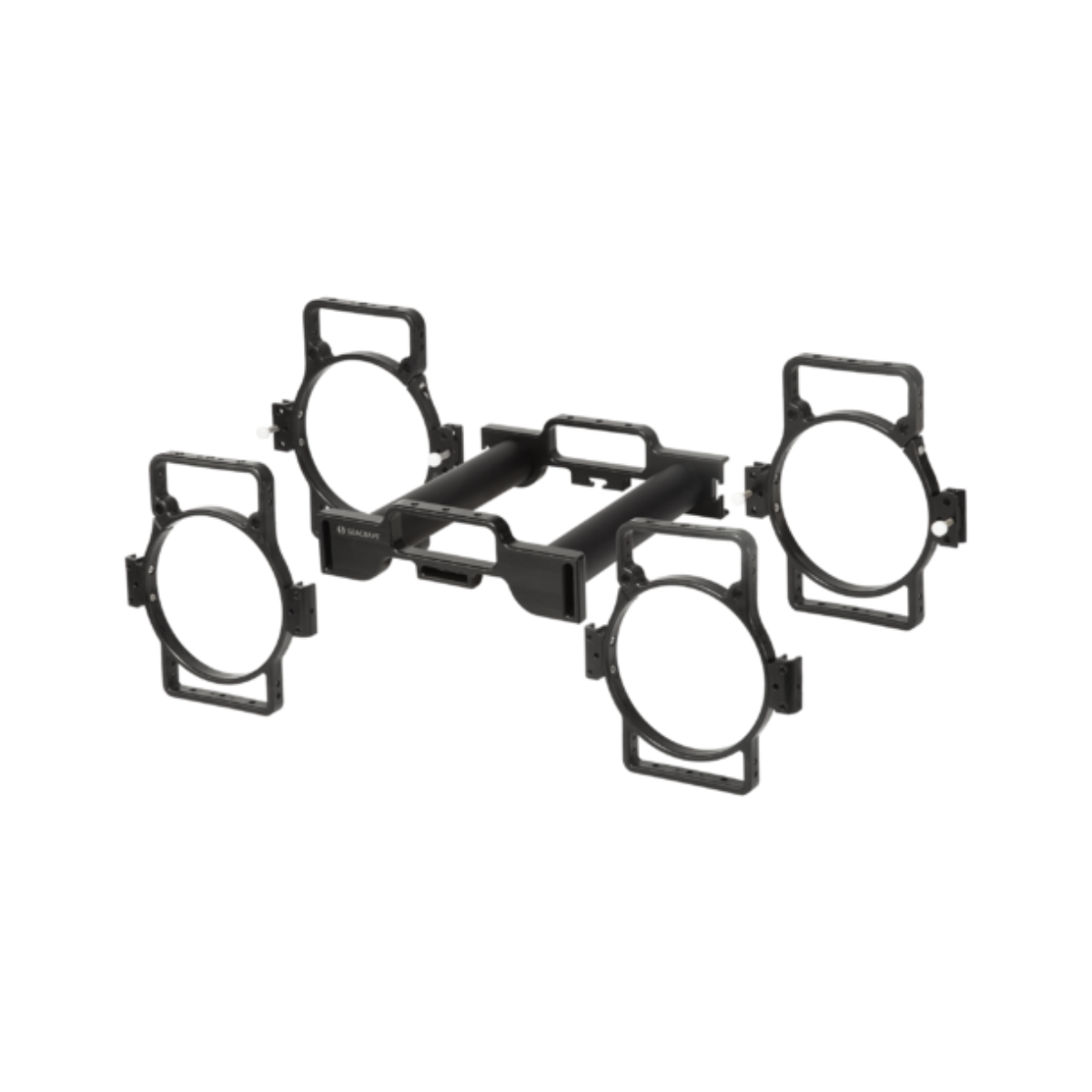

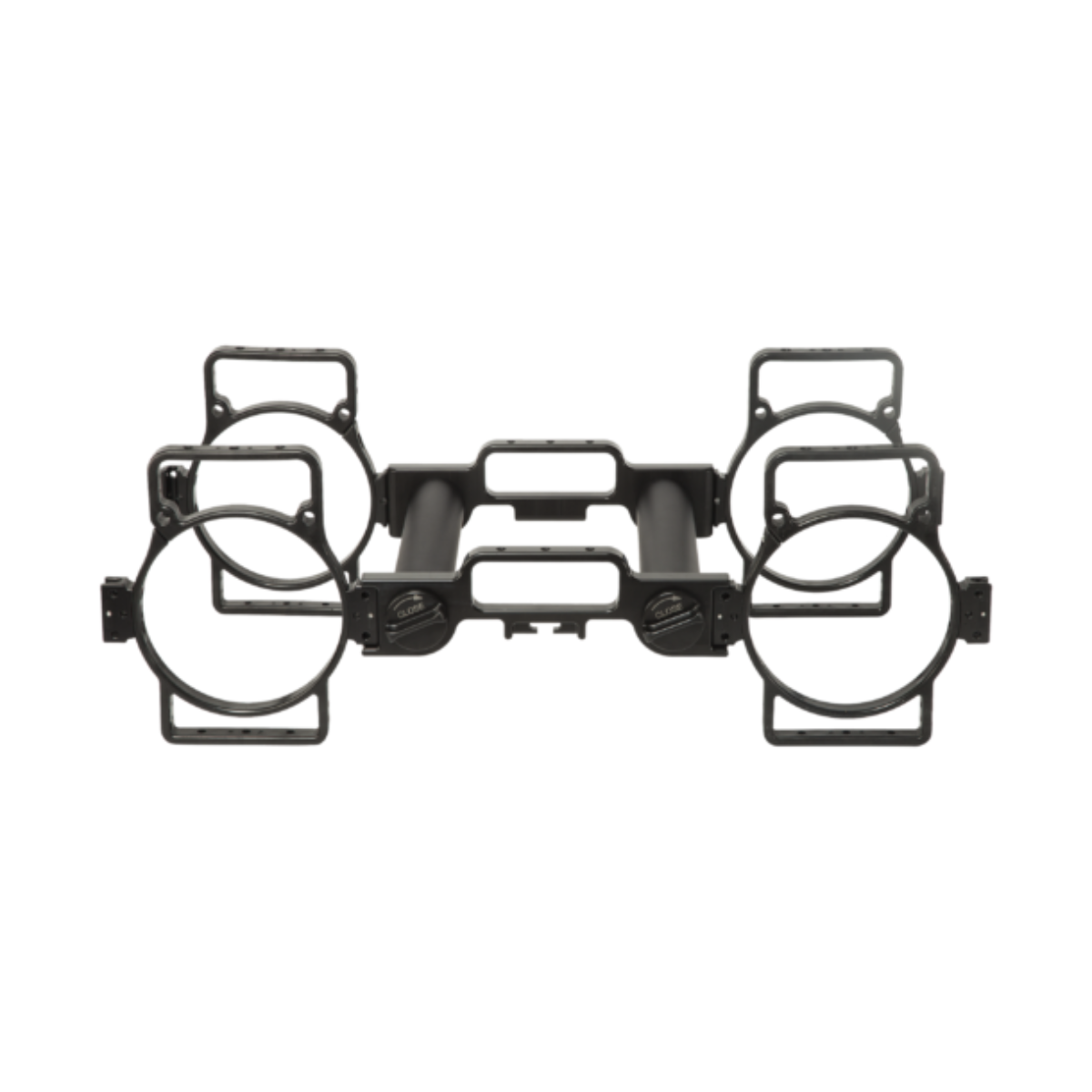

DPV Coupling Set – Wide Platform

Double the power!

A dedicated DPV coupling platform allows connecting two Seacraft scooters together. The primary reasons to combine them are:

  • more power – two propellers double the thrust and provide a very powerful towing system
  • highly increased maximum speed (even 120m/min)
  • significantly increased driving range
  • simultaneous control and monitoring over two scooters
Compare
Category:
 Seacraft

    This Product is currently unavailable, please contact us for more information on this product

    Product Details

    TRANSPORTEXTENDED CAPABILITY

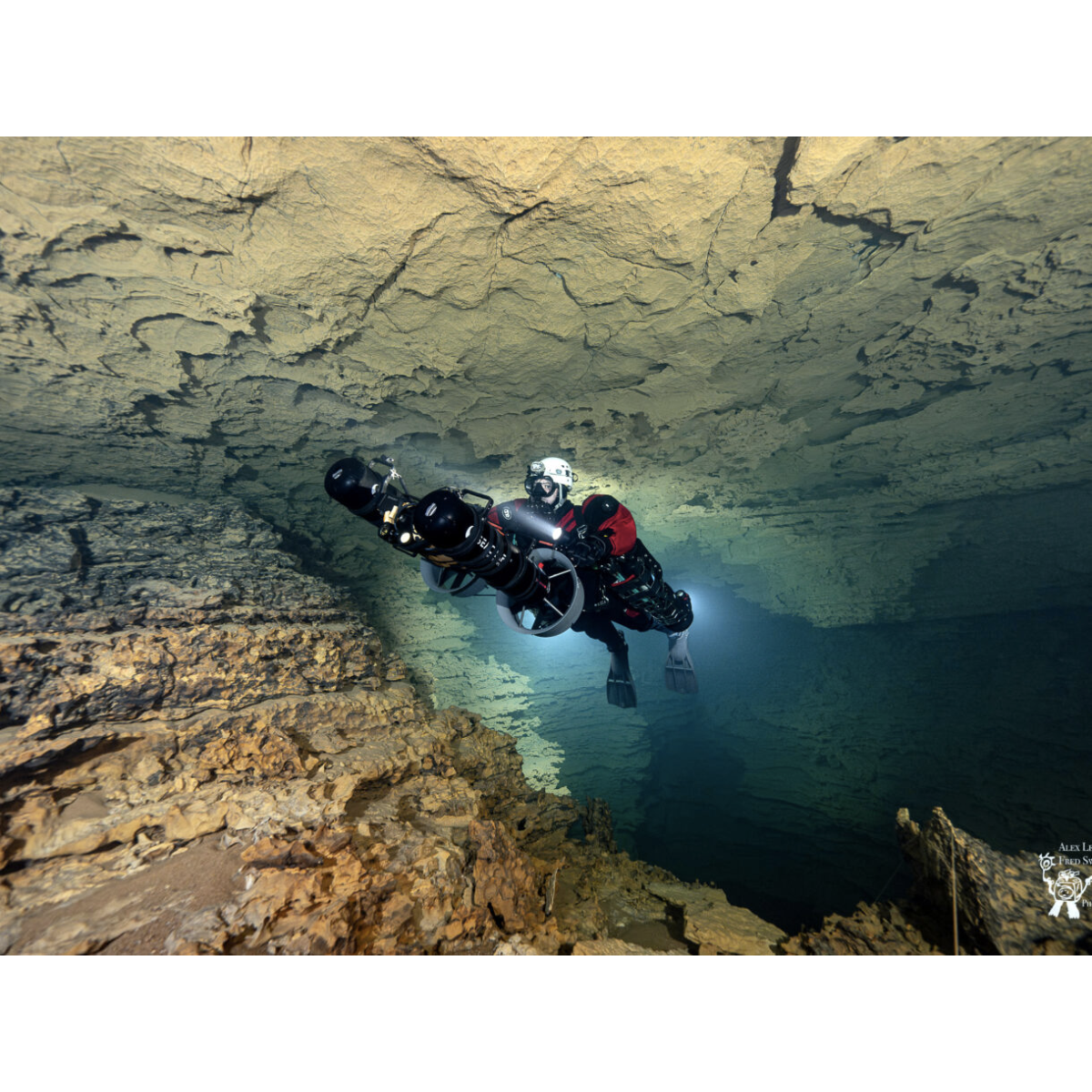

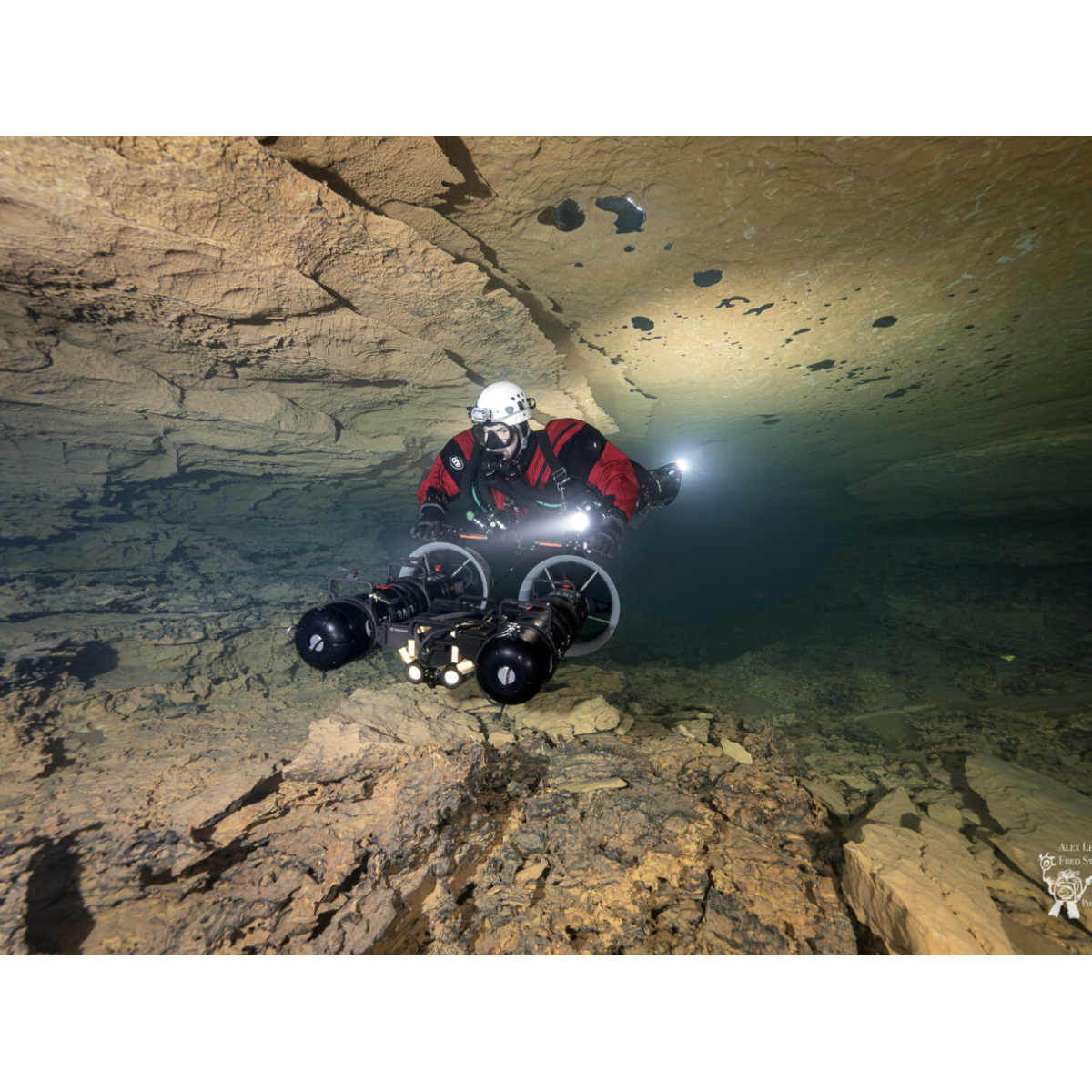

    Dedicated coupling sets with wide platforms allow tp connection of two separate DPVs to not only gain more power but allow to use of the extended capability of a wide platform for cargo and equipment transport, especially for long cave dive explorations.

    • almost limitless options to transport additional tanks, batteries, hard and soft dry containers, rebreathers, big photo/video rigs, and other equipment
    • construction of the platform provides multi-options for attaching external equipment attached points on front and back of the platform frame in example large camera dimensions or navigation systems
    • fewer items needed to be attached/towed by the diver – especially backup scooter, as scooters forming the platform can be momentarily disconnected
    • due to positive lift in the platform buoyancy tubes, (+290g each tube) the whole set-up can be simply trimmed in the water



    QUICK COUPLINGFAST AND RELIABLE

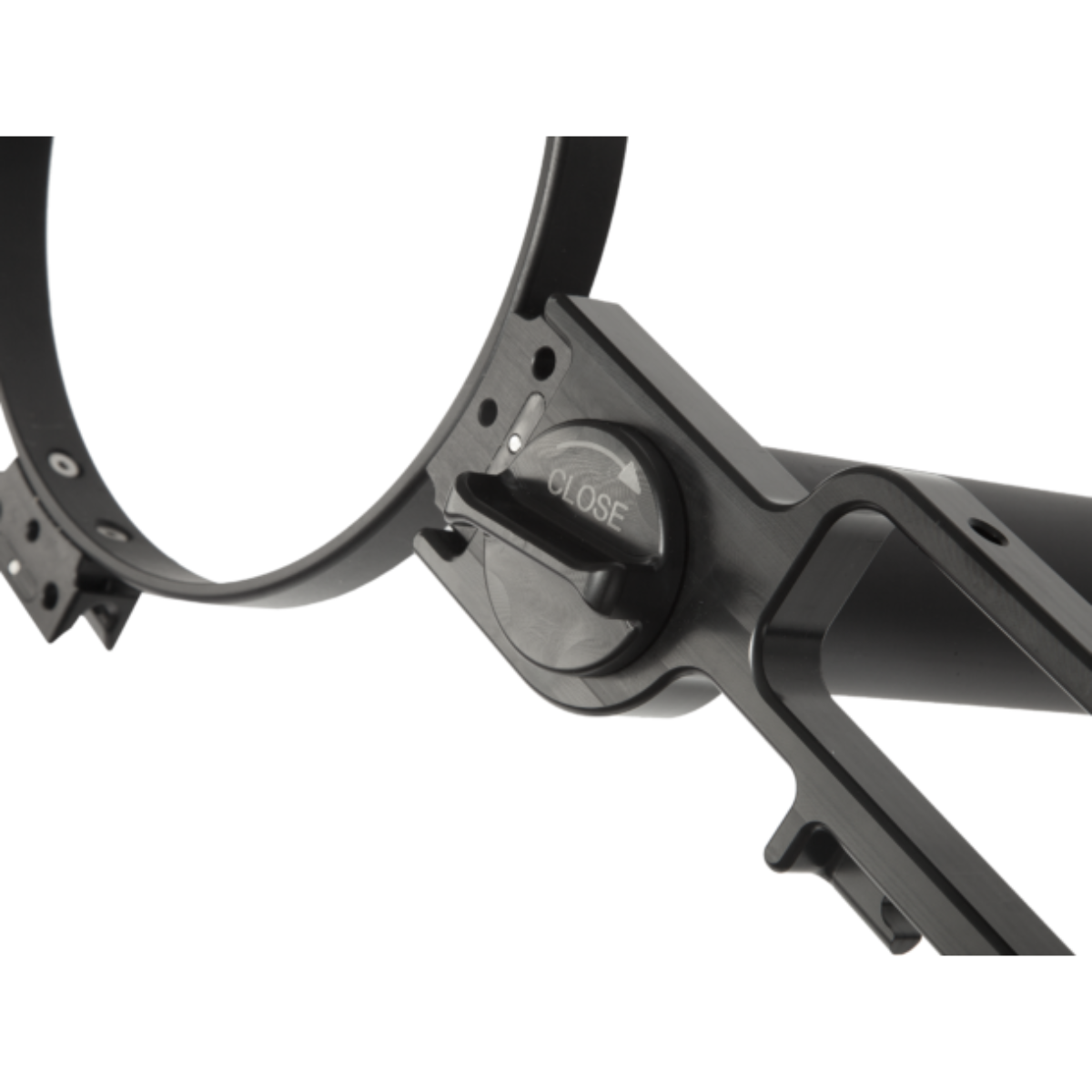

    A patented connection system allows to combine the DPVs in a moment – simply by pushing them together. Disconnecting is easy, even when using thick cold-water gloves. The platform itself is a separate element, simplifying activities such as trimming and transporting additional equipment attached to it.

    The coupling set with the wide platform is dedicated to Seacraft Future and Ghost DPVs and other scooters with 160 and 208 mm diameter dedicated transport brackets.

    Specifications

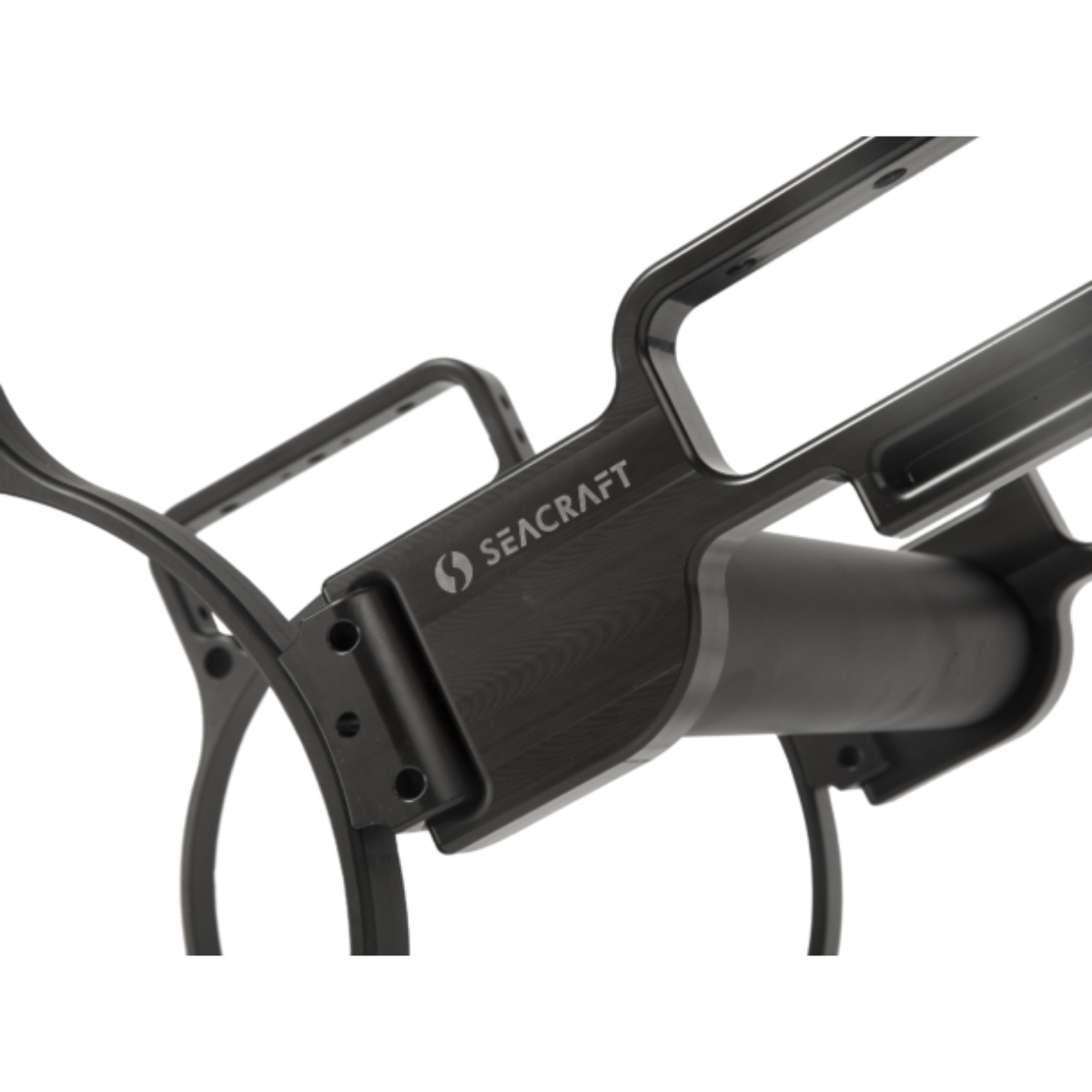

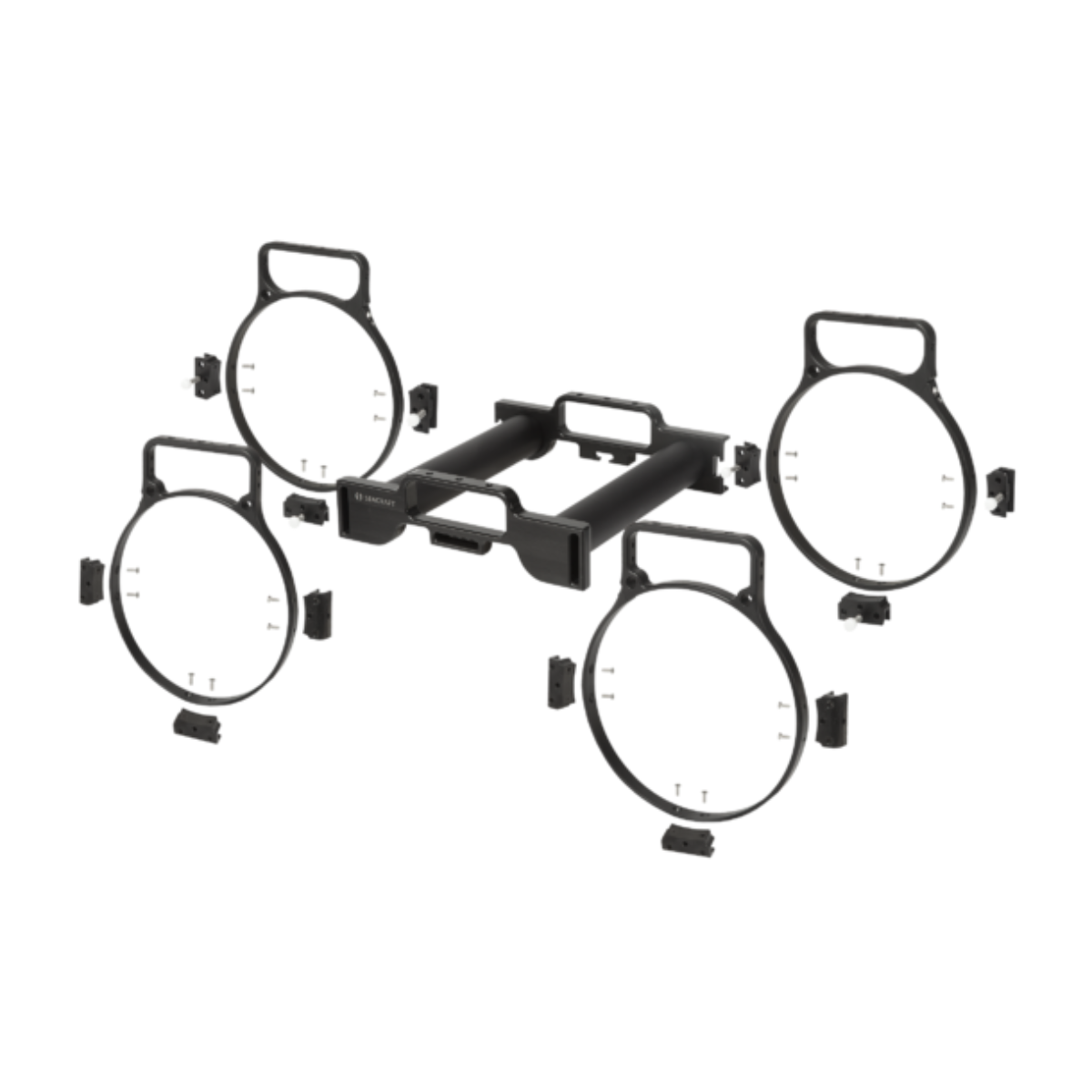

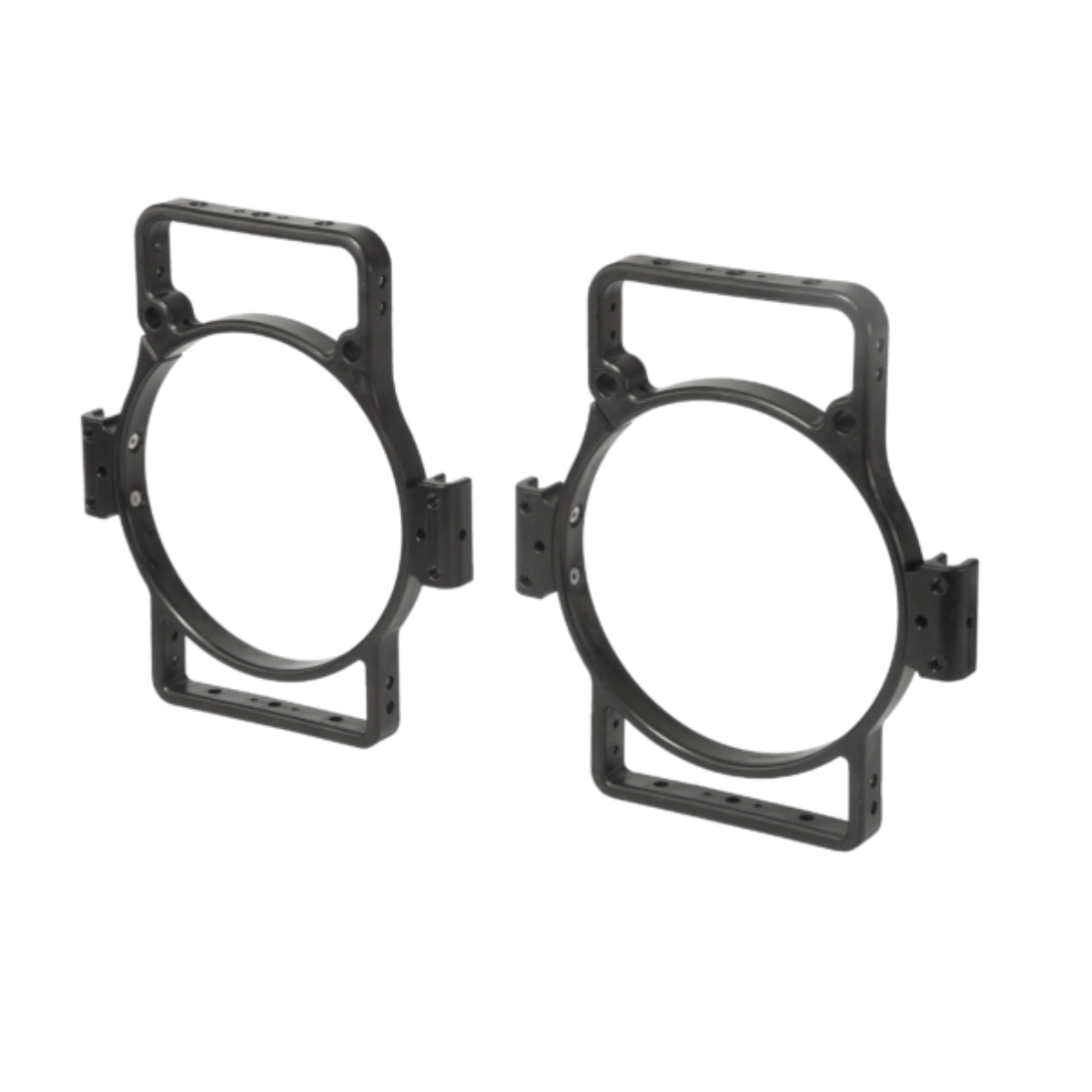

    The coupling platform is attached to the DPVs’ transport brackets, with attached patented quick coupling connectors.

    Depending on the used brackets, their parameters will vary. Parameters of the platform itself:



    Dimensions:

    Width: 29cm

    Length: 44.5cm

    Height: 8.3cm

    Housing Diameter: each buayancy tube diameter – 50mm

    Weight: 1.10kg



    Other:

    Maximum Depth: 300m

    Tested Depth: 350m

    Displacement: Platform buoyancy, with emply floats = +1.6kg in fresh water

    Material: Delrin and stainless steel

    Easy to use!
