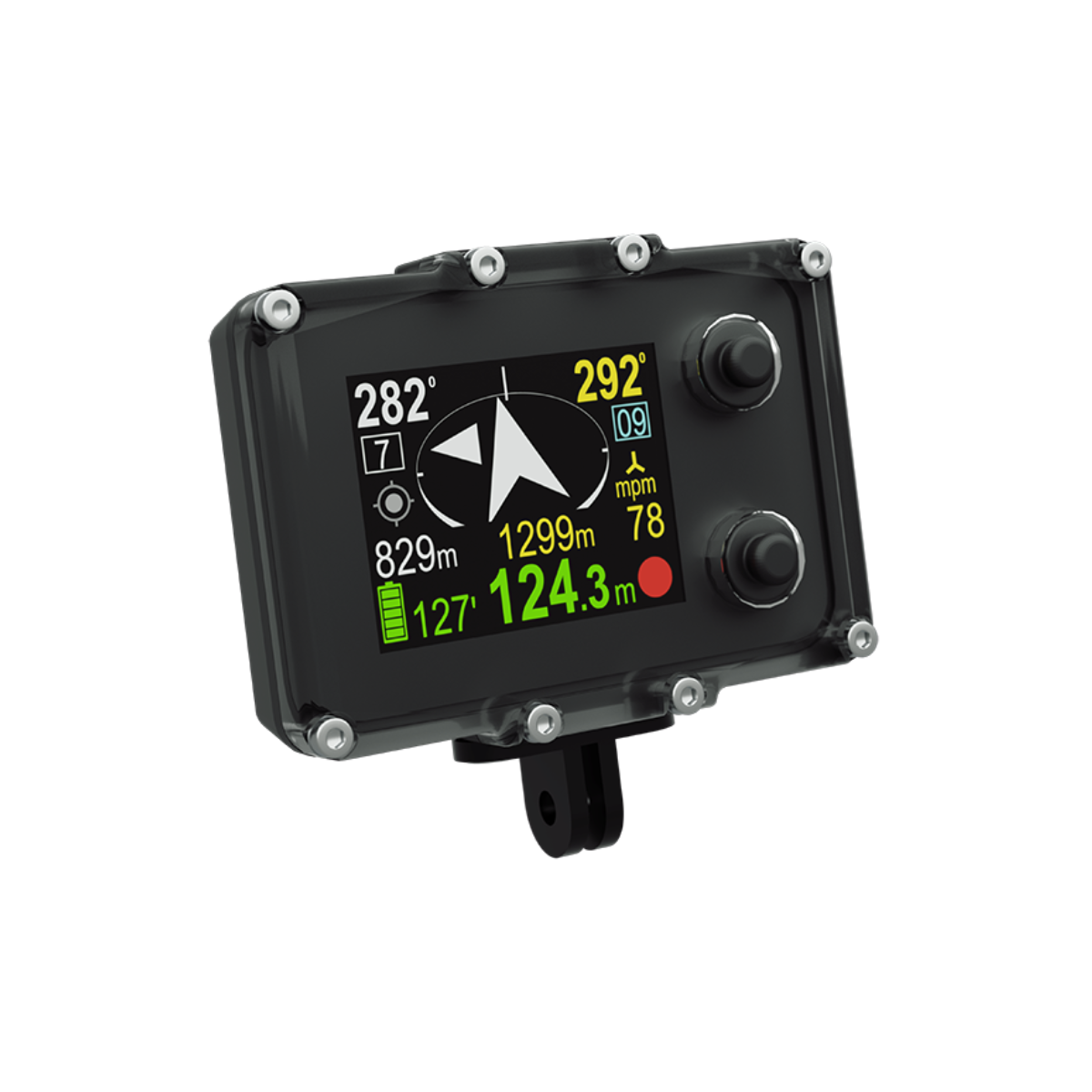

Seacraft Navigation System EN3C

The electronic navigation console ENC3 is a revolutionary device and the only one so compact and powerful navigational underwater tool available on the market.


    This Product is currently unavailable, please contact us for more information on this product

    Product Details


    • Depth of start and stop of immersion time counting: Optional: 0.5, 1 or 1.6 m (compatible with the norm EN 13319)
    • Accuracy of depth measurement: 0.3 m in the whole depth range, temp. range: 0…30°C
    • Accuracy of ext. log : <2%*
    • Accuracy of compass: <5 degrees*
    • Possibility of using above the water level : up to 5000 m
    • Internal storage capacity: 50 routes
    • Included sensors: 3D magnetometer, 3D gyroscope, 3D accelerometer, pressure sensor, temperature sensor
    • Satelite positioning: GPS, Beidou, GLONASS
    • Data exchange: via Bluetooth 4.2 and/or via USB cable

    * The accuracy of the measurement depends on the quality of the calibration and the absence of external interference.


    • Battery type: Built-in Li-ion 3,7 V**
    • Battery capacity: 5 Wh
    • Average time of charging 100%: <2 h

    ** Device can use any 5 V DC power source as charger. When charging, it can consume up to 1 A current.


    • Width: 30,6 mm
    • Lenght: 95 mm
    • Height: 71 mm
    • Weight: 290 g


    • Maximum depth: 300 m
    • Tested depth: 350 m
    • Displacement: -90 g
    • Operating temperature: +10 … +45⁰C
    • Storage temperature: -20 … +45⁰C
    • Temperature while charging: +10 … +40⁰C
