|Signal Gain||6 dbi|

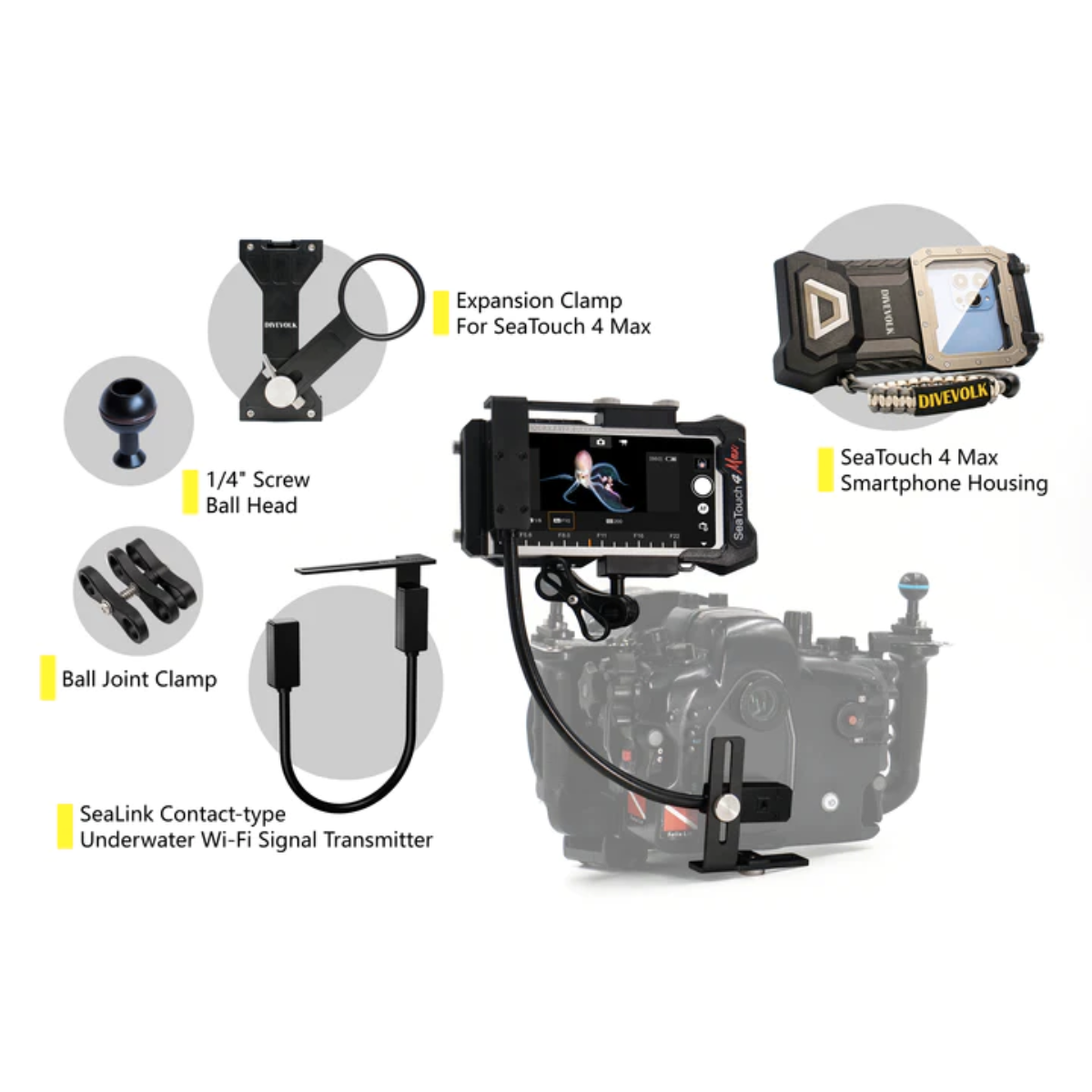

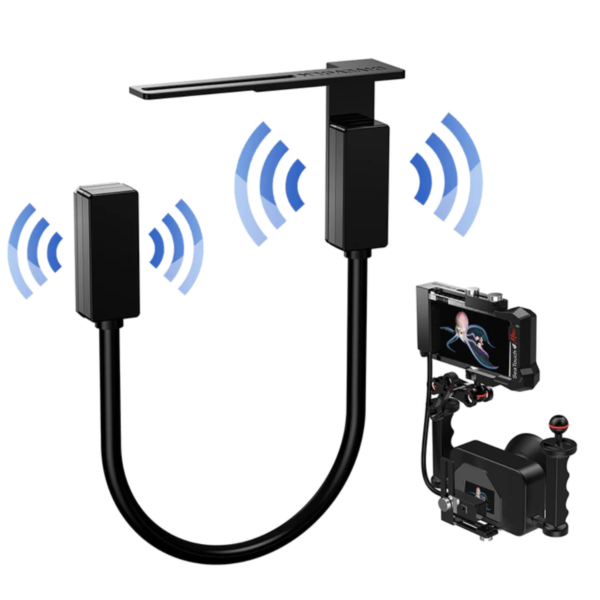

① The SeaLinkTM contact-type underwater Wi-Fi signal transmitter
② L shape bracket
③ I shape bracket
④ M6 screw x 4 pieces
⑤ 1/4 screw x 1 piece
⑥ Gasket x3 pieces
⑦ Quick Start Guide
⑧ EVA packing case
Instruction for use
① Please position the sensor within the screen area of camera housing in case the aluminum alloy camera housing isolates the Wi-Fi signal.
② Do not over-bend the wire, otherwise it will be damaged or affect the waterproof performance.

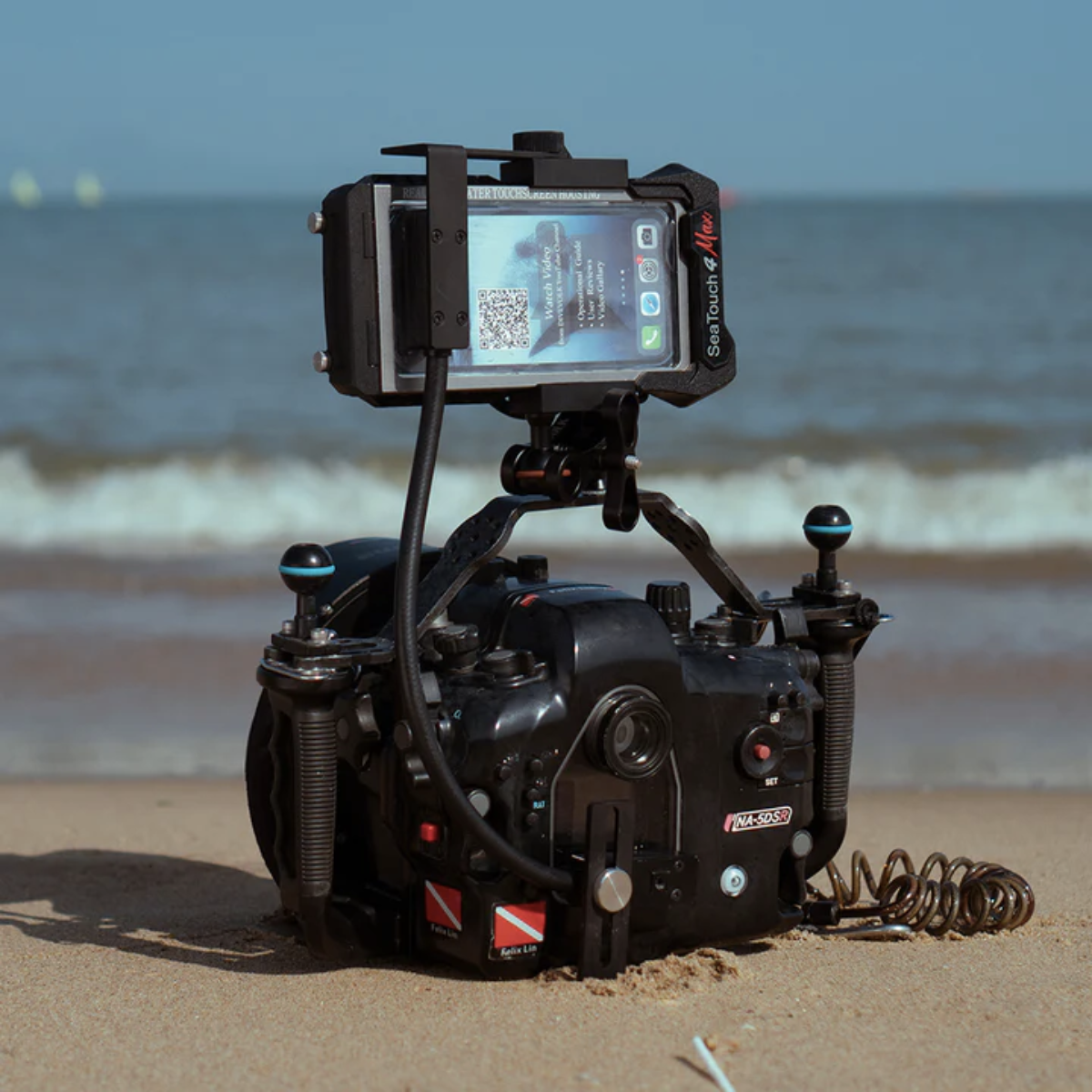

③ The SeaLinkTM Contact-type Wi-Fi signal transmitter needs to be installed on the expansion clamp of the SeaTouch housing.
④ It might be slight delay of the image transmission when using the Wi-Fi connection, the transmission status will vary depending of the performance of different camera.
⑤ It is recommended to complete the pairing and connection of the smartphone and the camera on land before launching into the water.
⑥ In order to use this product better, please watch the operation video before further use.
① Use two M6 screws to fix the sensor on the expansion clamp of the SeaTouch housing
② Position the sensor on the edge of The SeaTouch housing
③ Use a M6 screw to fix the other senor on the L shape bracket
④ Use a M6 screw to fix the L shape bracket on the I shape bracket
⑤ Use the 1/4 screw to fix the I shape bracket on the bottom of the camera housing
