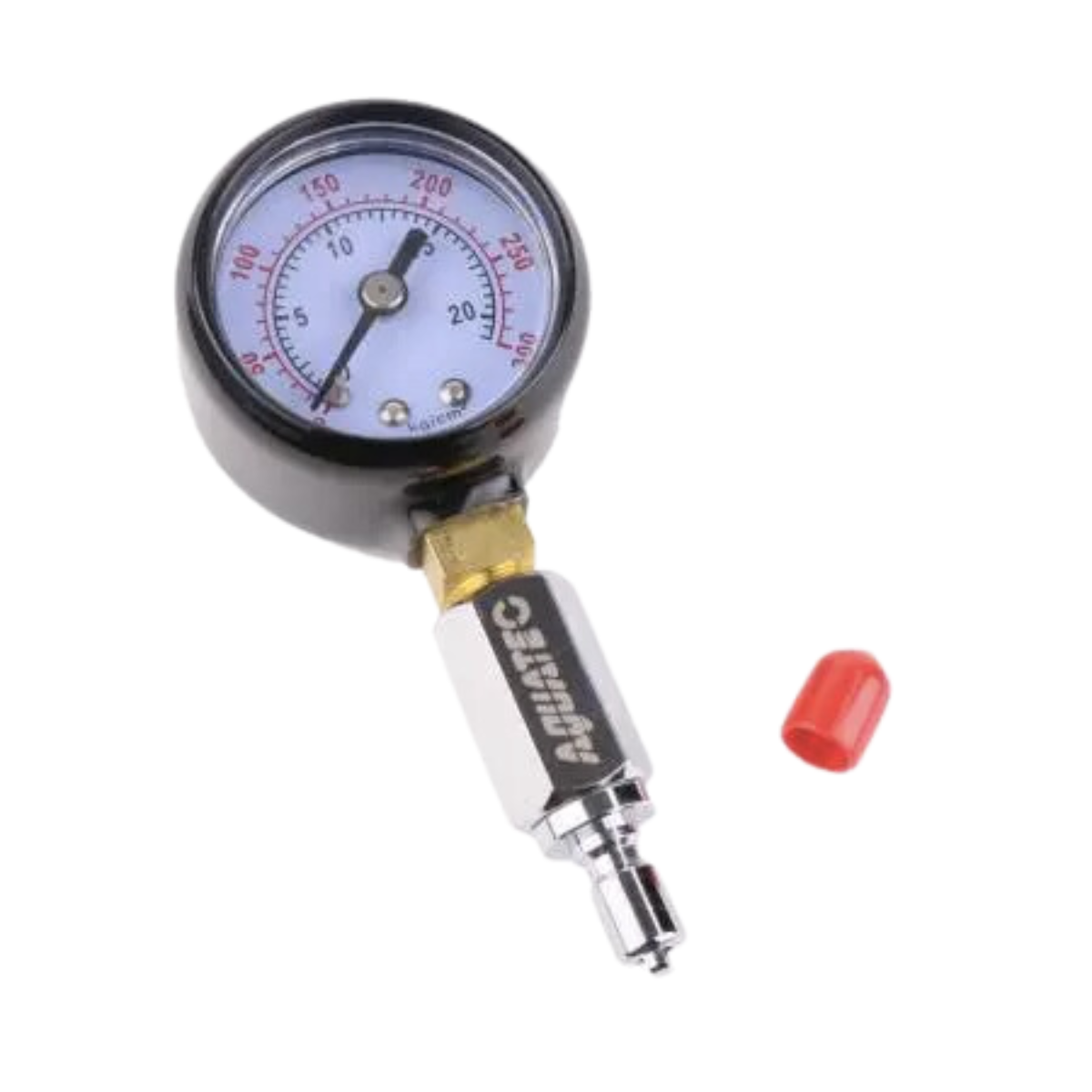

Intermediate Pressure Gauge


The Intermediate Pressure Gauge is used to measure the intermediate pressure of any regulator. Perfect for field diagnostics, this small gauge plugs into any standard low-pressure inflator hose. Compact and lightweight, the Intermediate Pressure Gauge fits easily in a tool bag or save-a-dive kit.

In stock

Information Table
GST 12% Included
SKU: TK-400-IPG Category:

Product Details

Intermediate pressure gauge, IP gauge, Regulator intermediate pressure checker gauge 300PSI

Compact Intermediate Pressure Gauge for testing the intermediate pressure (IP) from a first stage regulator. Use the IP Gauge to diagnose regulator issues – determine if that hissing second stage is really a second stage issue or first stage creep. Compact but easy to read, this IP Gauge is ideal for a field maintenance kit for dive expeditions should first stage adjustments be necessary (by a suitably qualified person). The IP Gauge attaches to the first stage via a standard quick release (QR) connector on the BC inflator hose. This oil-filled IP gauge is not only designed for technicians, but also for divers who would like to check the IP output of their regulators. The gauge is fitted with a quick connector that fits standard BCD inflator hoses and a booth to protect the gauge.

Scuba Gear Technical Information:

  • Dimensions: Gauge face 35mm (<1.5″), overall length 100mm (4″), width (including boot) 45mm (1.5″)
  • Dual graduations, measures in both kg/cm2 and PSI.
  • Brass mechanism inside a plastic body with a chrome plated brass nipple
  • Graduated scales in imperial (10 psi increments) and metric units (0.5 kg/cm2 increments)
  • Weight:2.6 oz (.07 kgs)
  • Intermediate Pressure Gauge with BCD Quick Disconnect Fitting
  • Ultra Lightweight Intermediate Pressure Gauge
  • 300 psi (20 bars) Readout
  • Impact Resistant Rubber Boot
  • Chrome Plated Marine Grade Brass QD Fitting
